Glass Cutting Series
Powerful, stable, and user-friendly cutting machines — developed with innovative design concepts and a dedication to perfection.
HANWIN GLASS TECHNOLOGY · BEIJING, CHINA
About Hanwin Glass Technology
Hanwin Glass Technology has been committed to leading and creating value in glass cutting technology since its establishment. Our series of cutting machines, developed with innovative design concepts and a dedication to perfection, are powerful, stable, and user-friendly, making Hanwin a benchmark brand in the industry. We offer both straight-line and shaped flat glass cutting machines, equipped with fully automatic single or double-sided loading platforms and air-float breaking tables. With a wide range of models and configurations, our solutions cater to all types of glass processing enterprises. As a technology-driven enterprise, Hanwin strives for precision, efficiency, simplicity, and energy savings in every product. We adhere to a design philosophy centered on simplicity, user-friendliness, and safety.
Heritage of Craftsmanship
Through unwavering dedication over three decades, we refine every product and service to ensure exceptional quality.
Innovation as Our Engine
Propelled by continuous R&D investment, we consistently lead the way in technological advancement for our industry.
Partnership Built to Last
We have supported clients in over ten countries worldwide, with many collaborations enduring for decades.
Glass Cutting Series, Product Overview

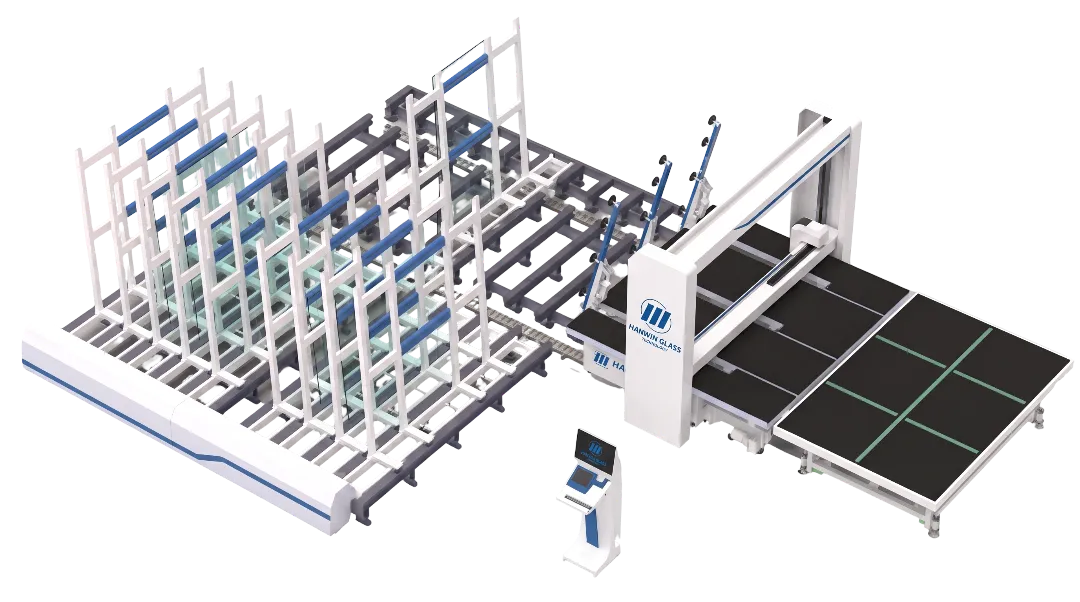

Twelve integrated systems cover the full glass cutting flow — from smart warehouse storage and sheet loading through cutting, laser coding, breaking, grinding, and all-in-one processing.

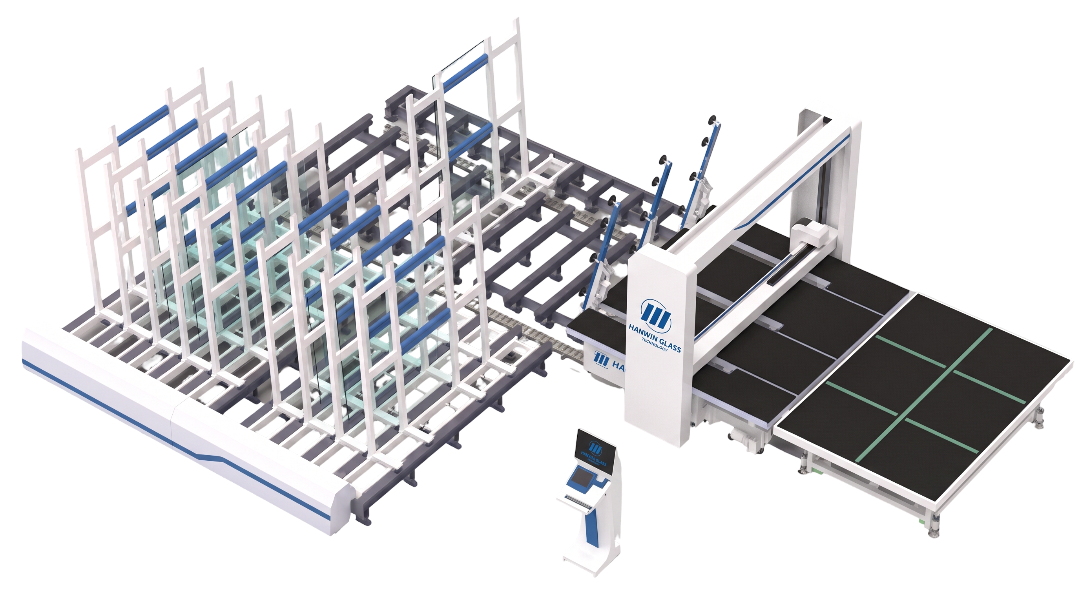

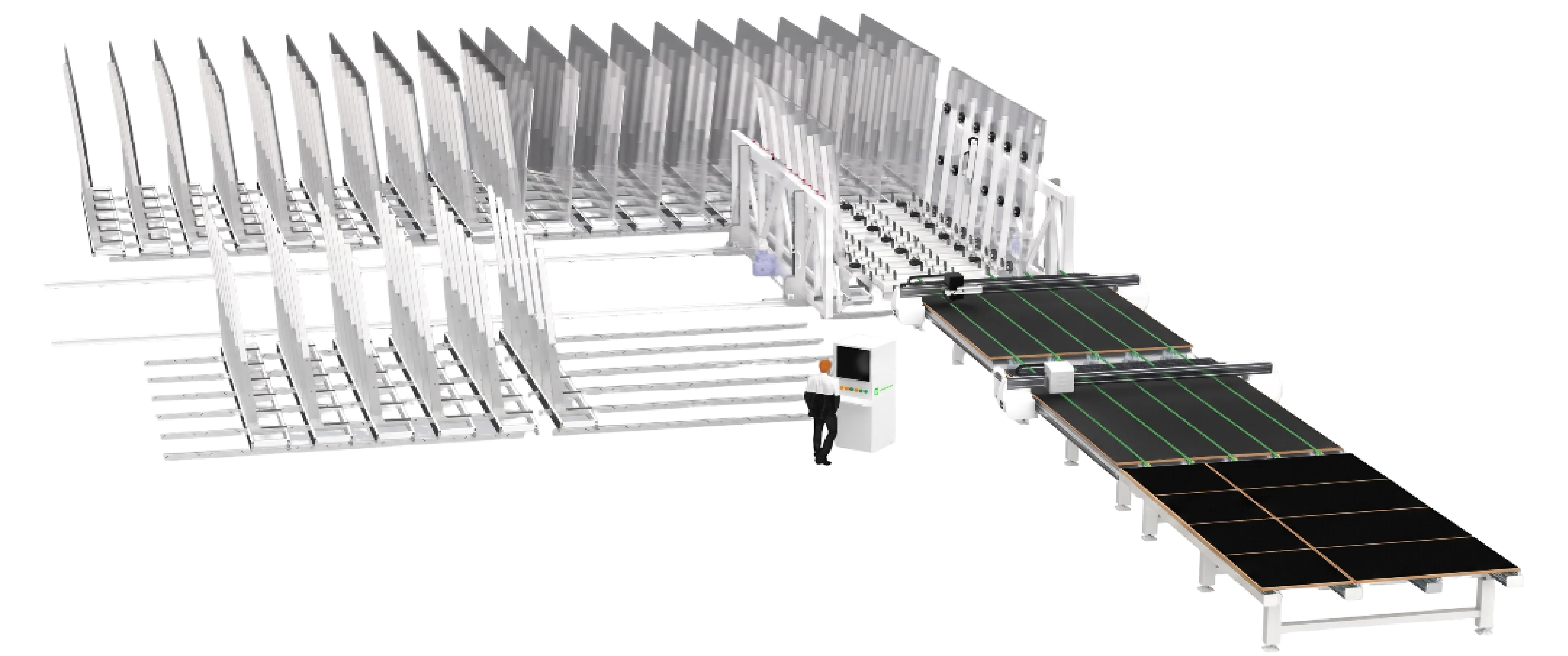

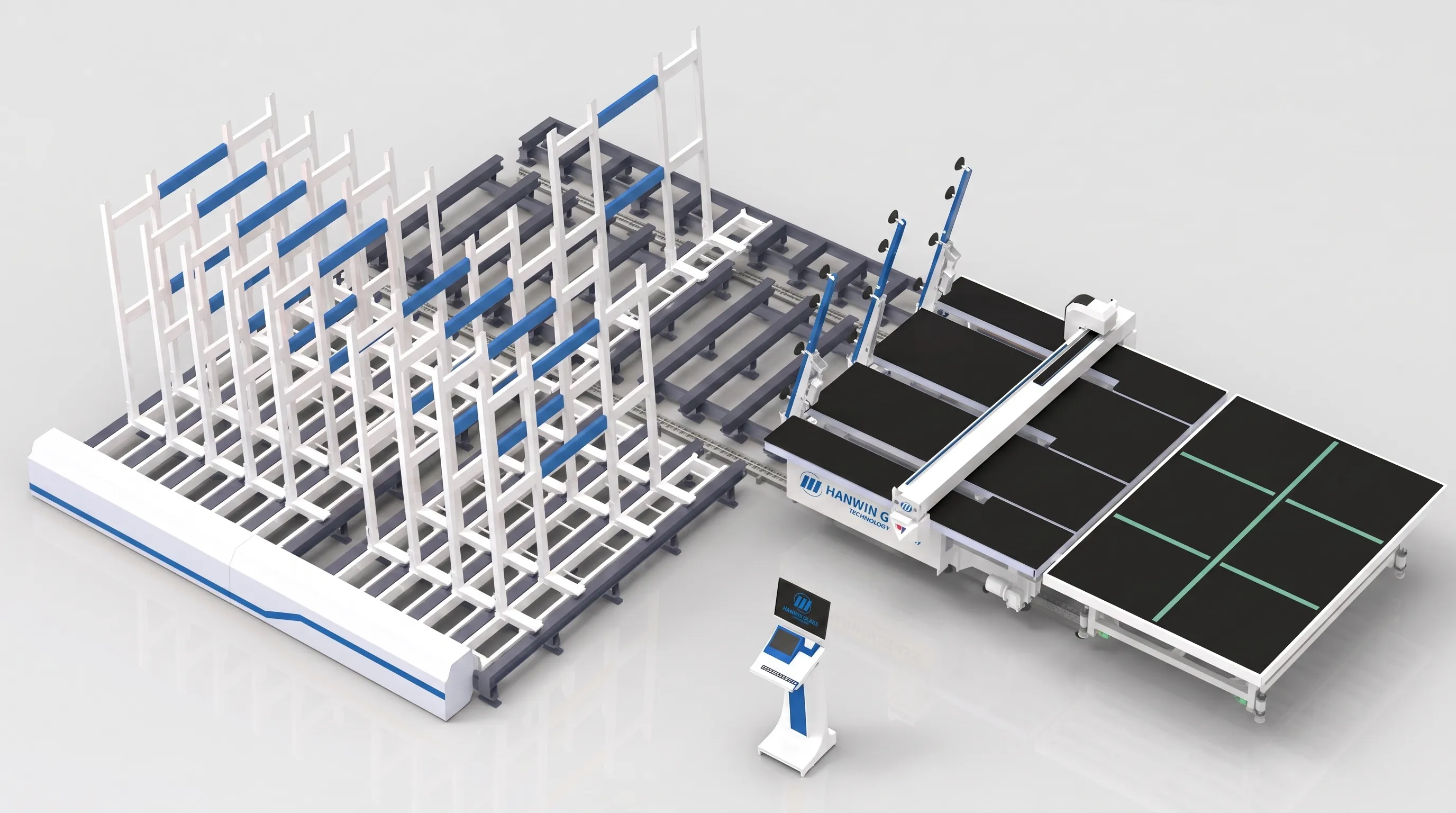

Smart Warehouse for Raw Glass Sheets + CNC Cutting Conveying Line
Smart storage with fully automatic hydraulic loading. The intelligent conveying and loading system enables flexible retrieval from storage and loading onto the line from both left and right sides. Its simple structure ensures high efficiency, low failure rates, and delivers true, fully automated intelligent operation.
| Model No. | Max. Cutting Size (mm / in) | Max. Capacity | Max. Size | Thickness (mm) | Speed | Power (KW) |
|---|---|---|---|---|---|---|
| CC6000 | 6100×3300 / 240×130 | 7T | 7620×4950×2200 / 6150×2800×650 | 2–19 | Cycle <60s/pc · Speed 30m/min | 12 |
| CC5000 | 5100×3300 / 200×114 | 6.2T | 6620×4950×2200 / 5150×2800×650 | 2–19 | Cycle <60s/pc · Speed 30m/min | 10.5 |

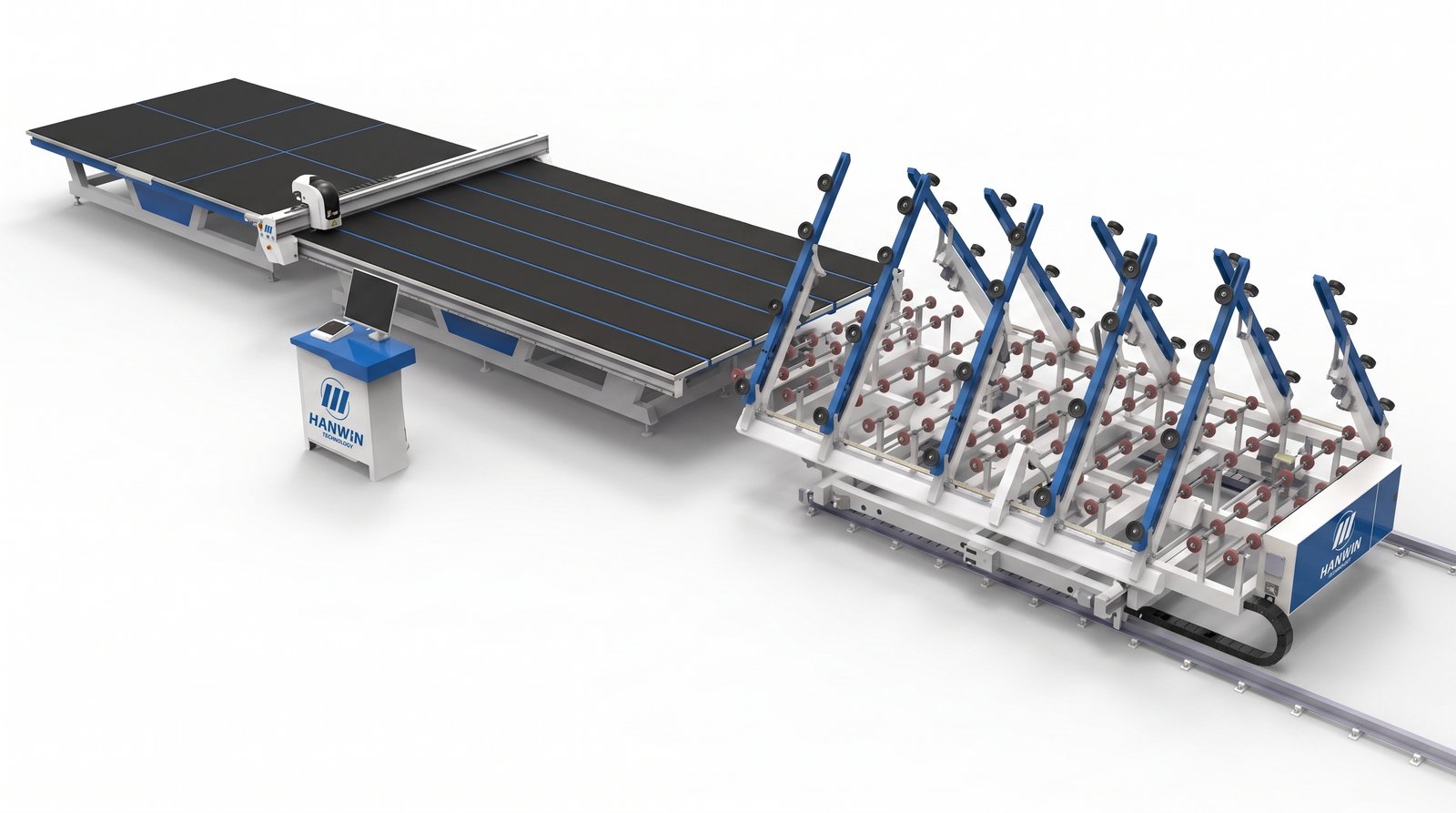

Computer Numerical Control Glass Cutting Conveying Line
"One-Touch Sheet Retrieval" synchronizes with the entire production line; dual-origin design enables free sheet loading from both left and right sides.
| Model No. | Max. Cutting Size (mm / in) | Max. Size | Precision | Thickness (mm) | Speed | Power (KW) |
|---|---|---|---|---|---|---|
| PQ6133 | 6100×3300 / 240×130 | 21050×4240×850 | ±0.15 | 2–19 | 160m/min | 23 |
| PQ4228 | 4200×2800 / 165×110 | 14500×3700×850 | ±0.15 | 2–19 | 160m/min | 21 |
| PQ3624 | 3600×2400 / 144×96 | 14050×3040×850 | ±0.15 | 2–19 | 160m/min | 19.5 |
| PQ2420 | 2400×2000 / 94×78 | 8900×2800×850 | ±0.15 | 2–19 | 160m/min | 16 |

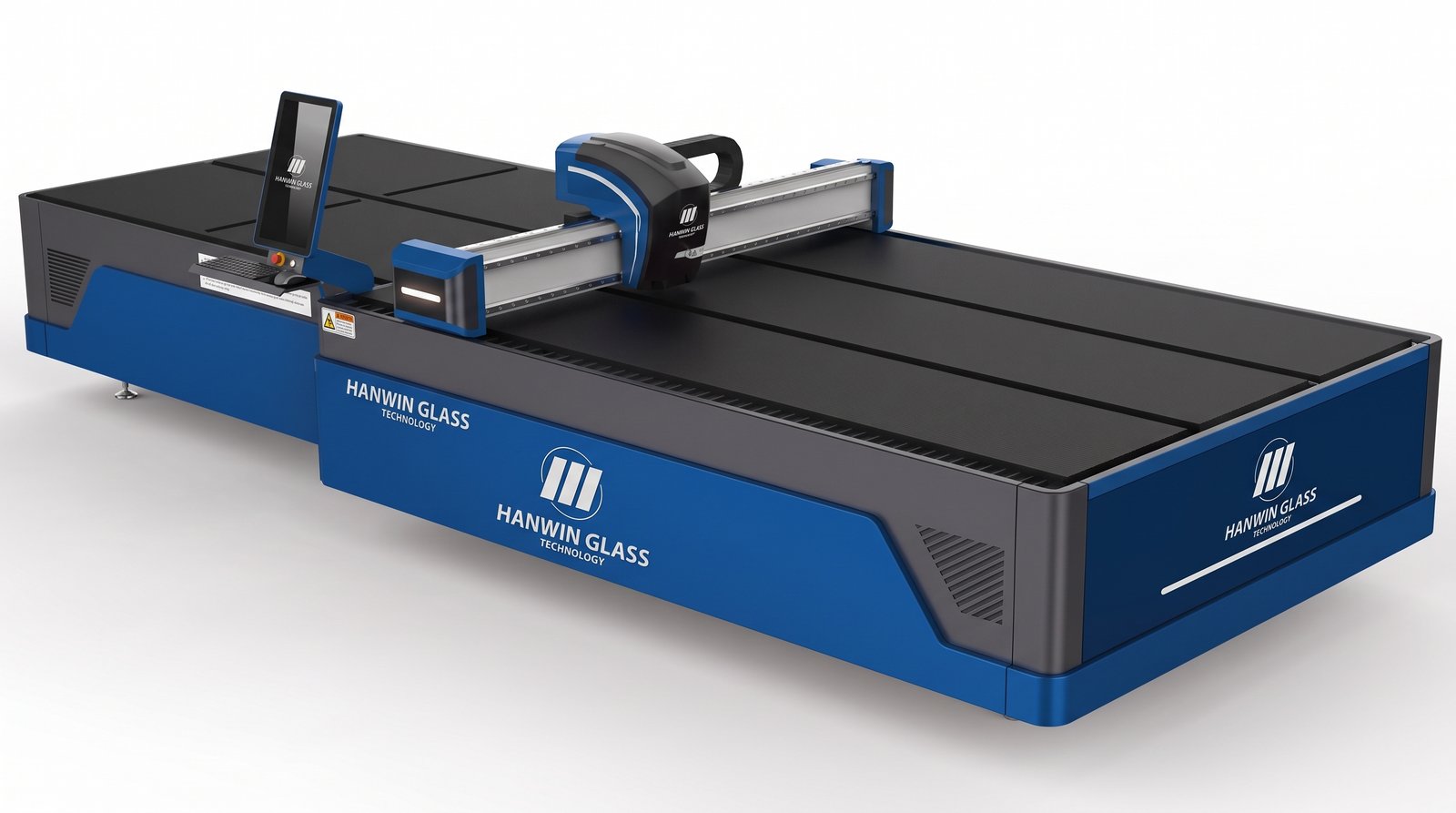

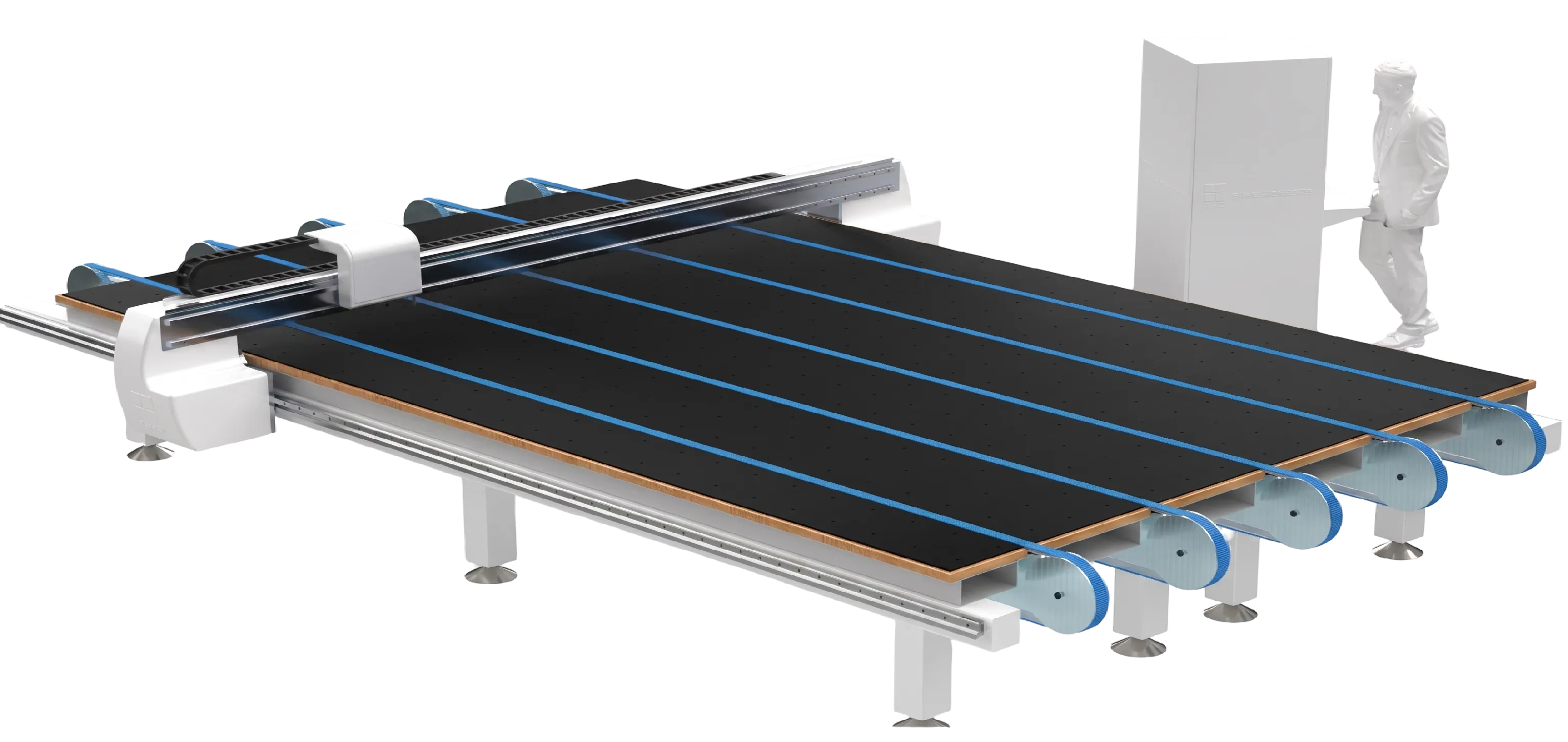

Hanwin CNC Cutting Conveying Machine
Powered by an advanced OMRON CK3M multi-axis controller and analog servo system, our drive achieves lightning-fast 50µs control cycles, unrivaled cutting speed and pinpoint accuracy, even for complex shapes.
Optimized path planning with nearest-tool-start and bidirectional cutting delivers maximum efficiency.

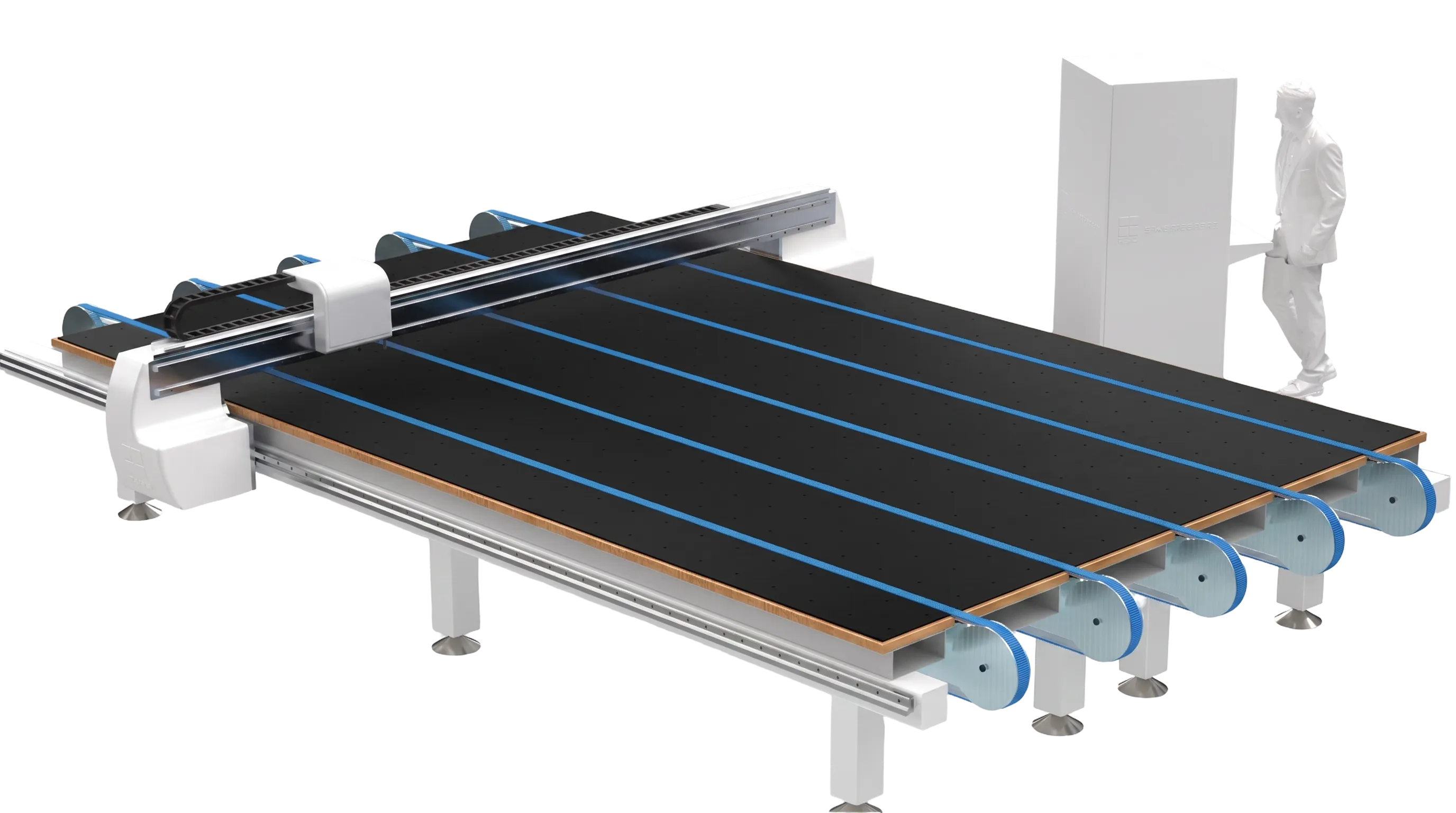

Maglev Series CNC Machine
Our cutting-edge drive system fuses with Hanwin's evolving proprietary software to deliver world-class performance. Featuring linear motor drives that minimize friction, our machines maintain peak speed and precision consistently over time.
| Model No. | Max. Cutting Size (mm / in) | Max. Size | Precision | Thickness (mm) | Speed | Power (KW) |
|---|---|---|---|---|---|---|
| PQ6133 | 6100×3300 / 240×130 | 6700×4240×850 | ±0.15 | 2–19 | 160m/min | 8.5–10.5 |
| PQ4228 | 4200×2800 / 165×110 | 5160×3700×850 | ±0.15 | 2–19 | 160m/min | 7.5–9.5 |
| PQ3624 | 3600×2400 / 144×96 | 4450×3040×850 | ±0.15 | 2–19 | 160m/min | 7–9 |
| PQ2420 | 2400×2000 / 94×78 | 3350×2800×850 | ±0.15 | 2–19 | 160m/min | 6–8 |

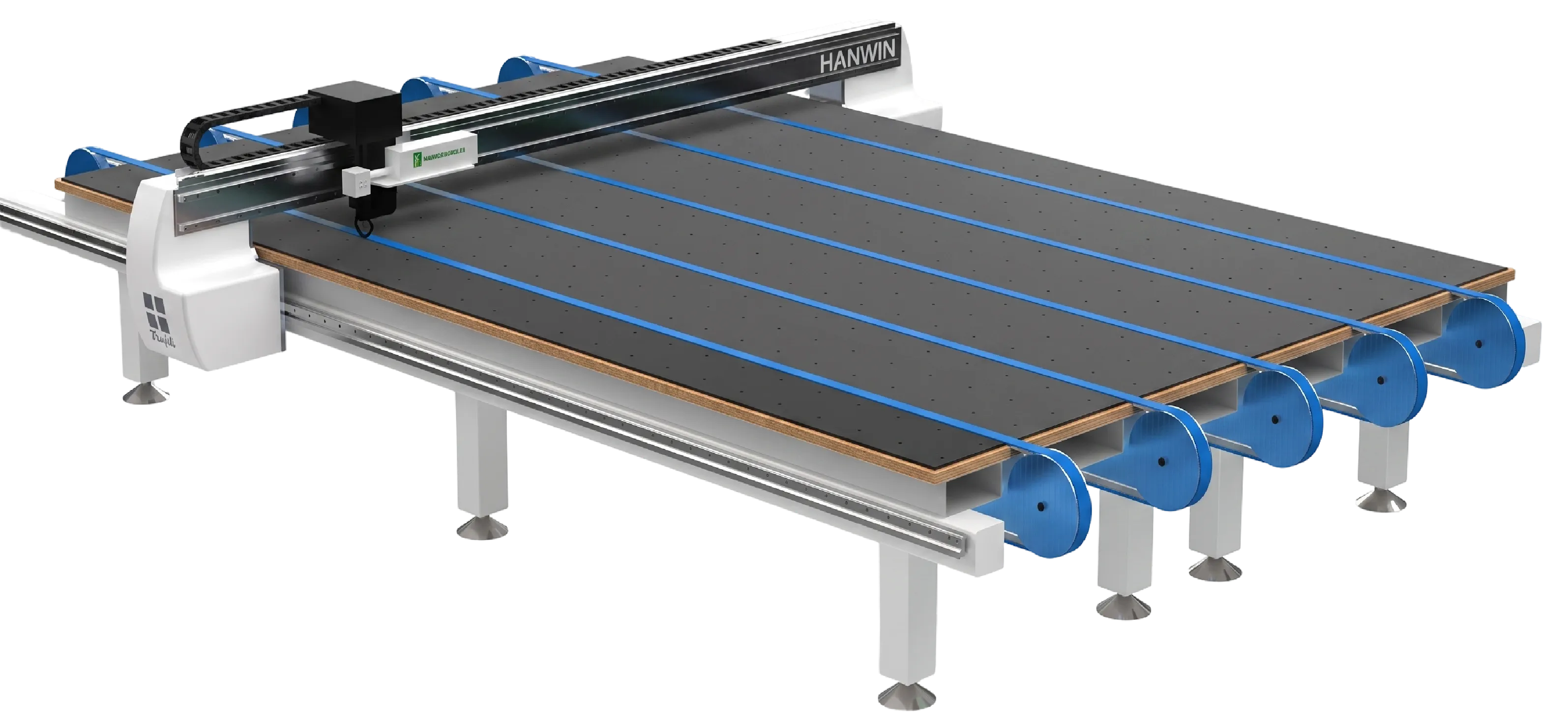

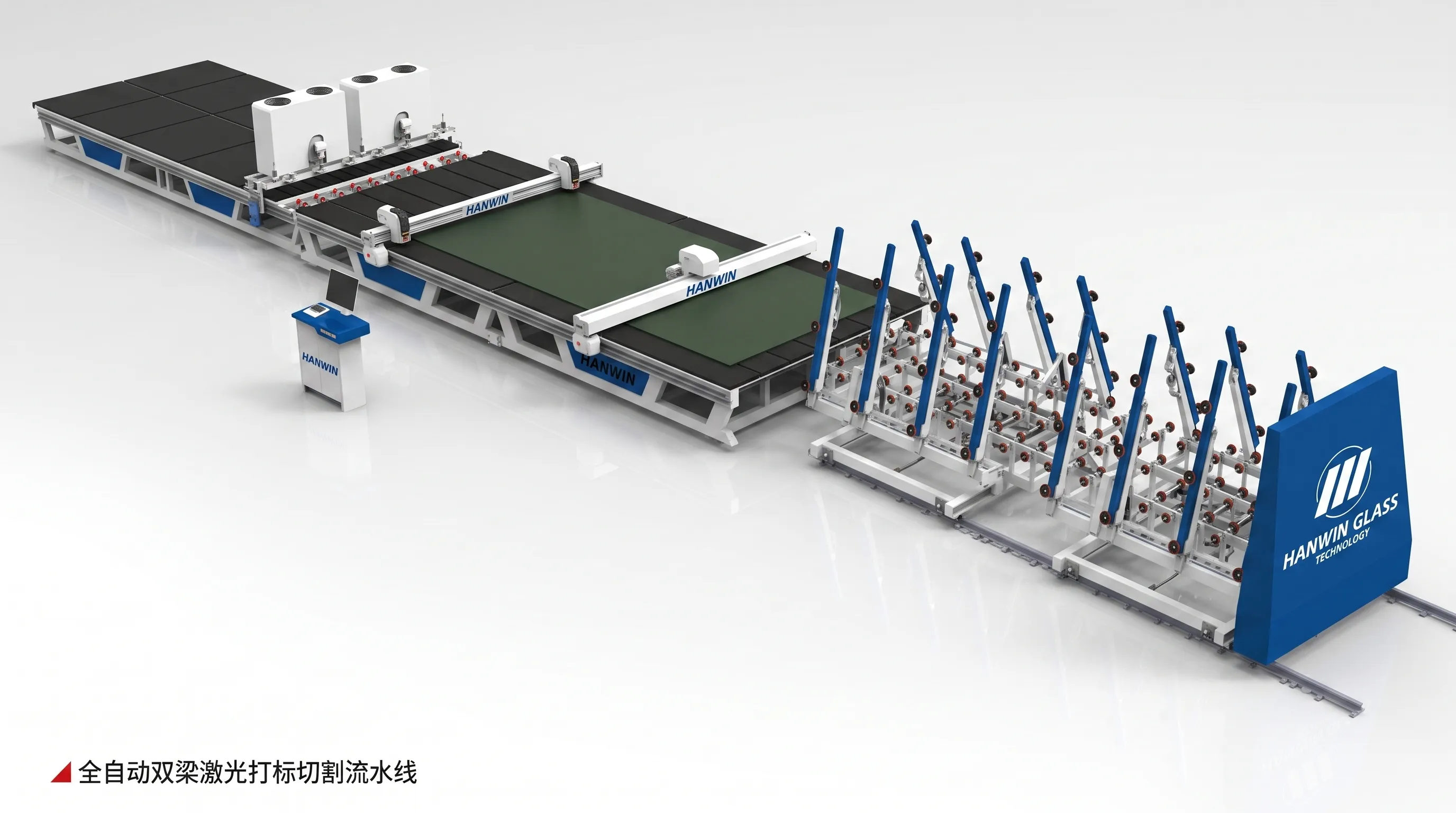

Intelligent Glass Laser Coding Conveying Machine
| Model No. | Max. Cutting Size (mm / in) | Max. Size | Precision | Thickness (mm) | Speed | Power (KW) |
|---|---|---|---|---|---|---|
| PQ6133 | 6100×3300 / 240×130 | 6700×4240×850 | ±0.05 | 0.2–19 | 160m/min | 8.5–10.5 |
| PQ4228 | 4200×2800 / 165×110 | 5160×3700×850 | ±0.05 | 0.2–19 | 160m/min | 7.5–9.5 |
| PQ3624 | 3600×2400 / 144×96 | 4450×3040×850 | ±0.05 | 0.2–19 | 160m/min | 7–9 |
| PQ2420 | 2400×2000 / 94×78 | 3350×2800×850 | ±0.05 | 0.2–19 | 160m/min | 6–8 |

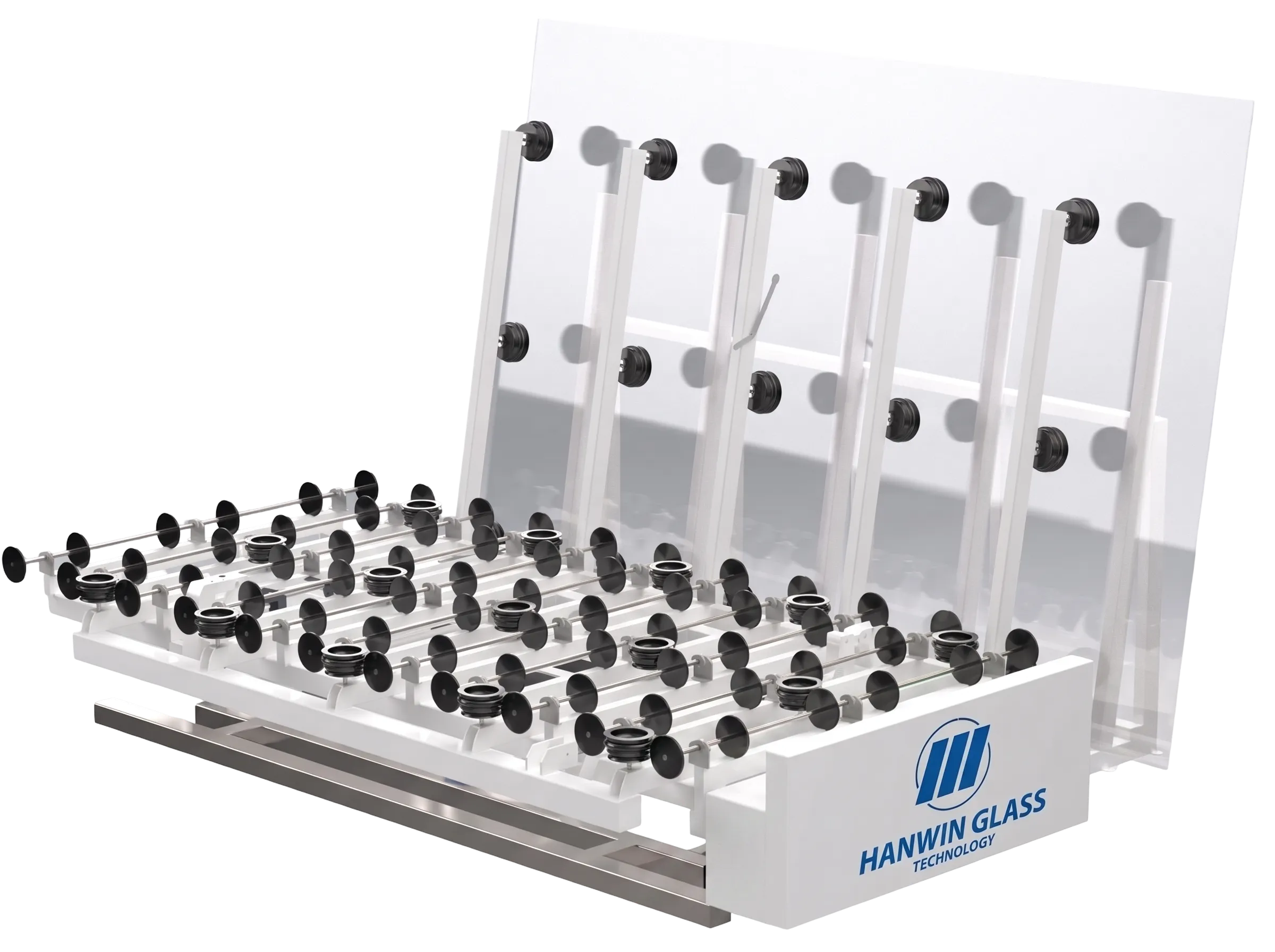

Fully Automatic Hydraulic Sheet Loading System
Fully automatic hydraulic sheet loading ensures gentle and steady operation with zero errors. Perfectly synchronized with the production line at 40 seconds per cycle, it requires no additional operation, delivering truly intelligent and fully automated performance.

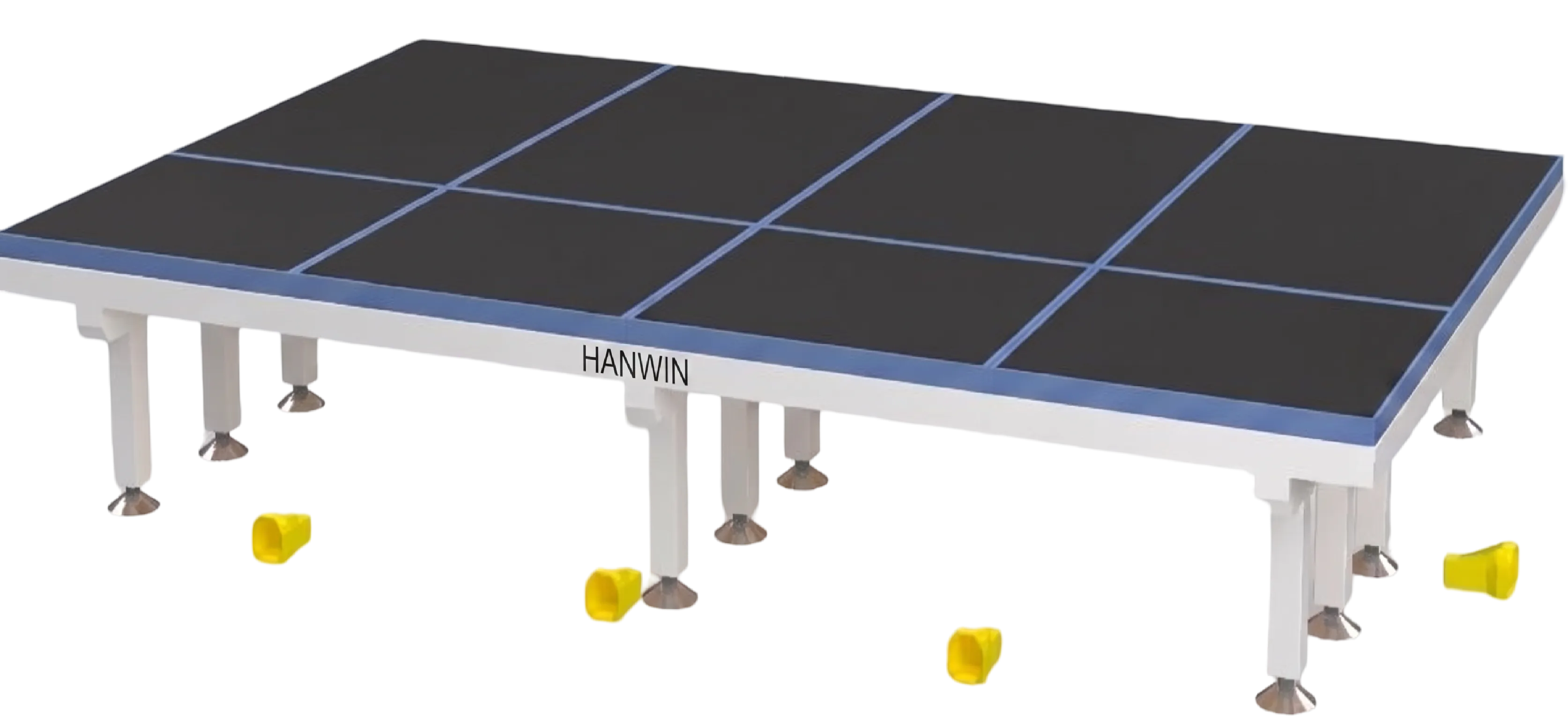

Air-Float Glass Separation Station
One-touch unload & go seamlessly integrates with the cutting line to enable completely hands-free, automated production flow.

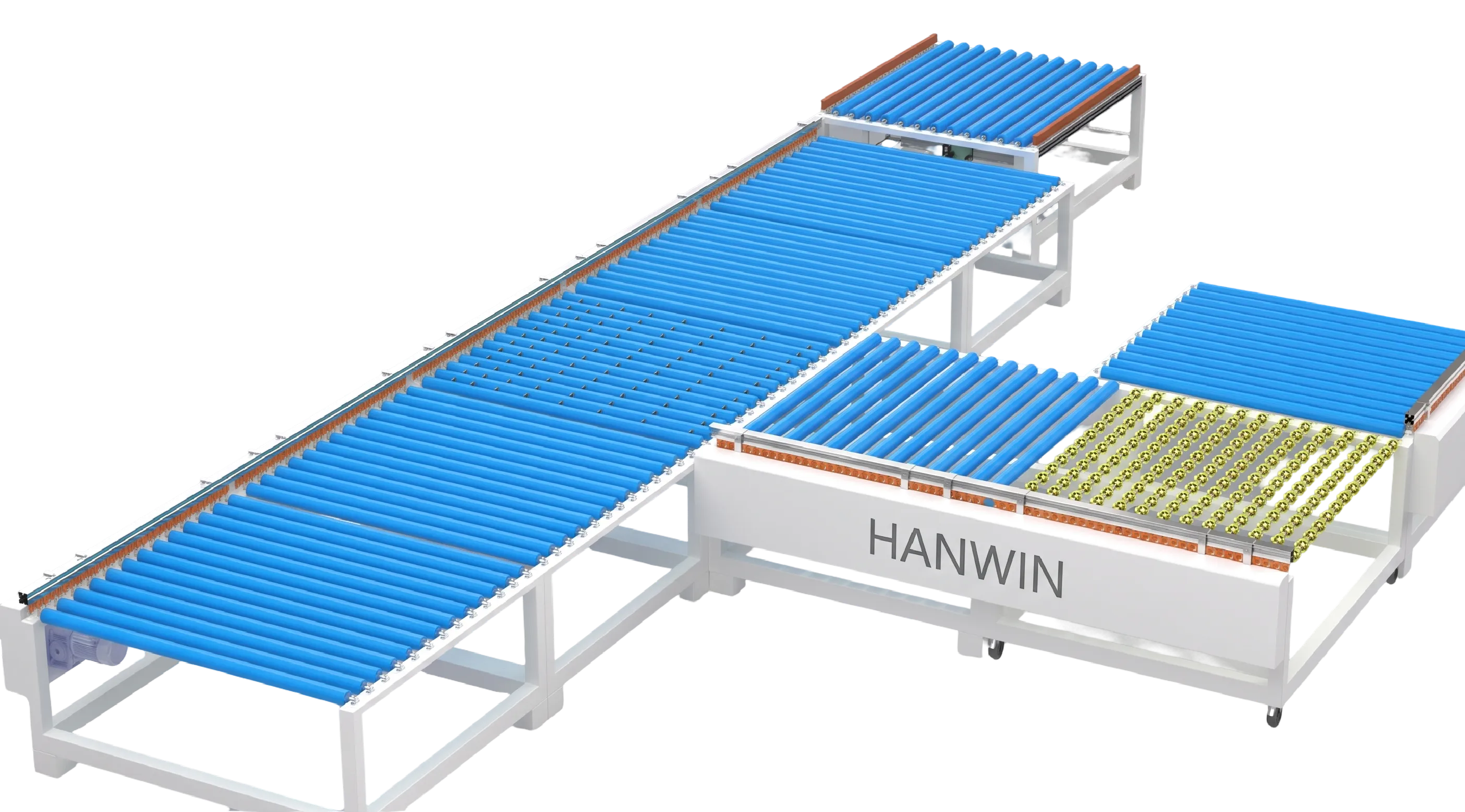

Cutting and Grinding Linked Line with Automatic Unloading
Smooth transmission, adaptable to various factory layouts including corners and turns, simple structure, high efficiency, low failure rate, truly intelligent and fully automated.

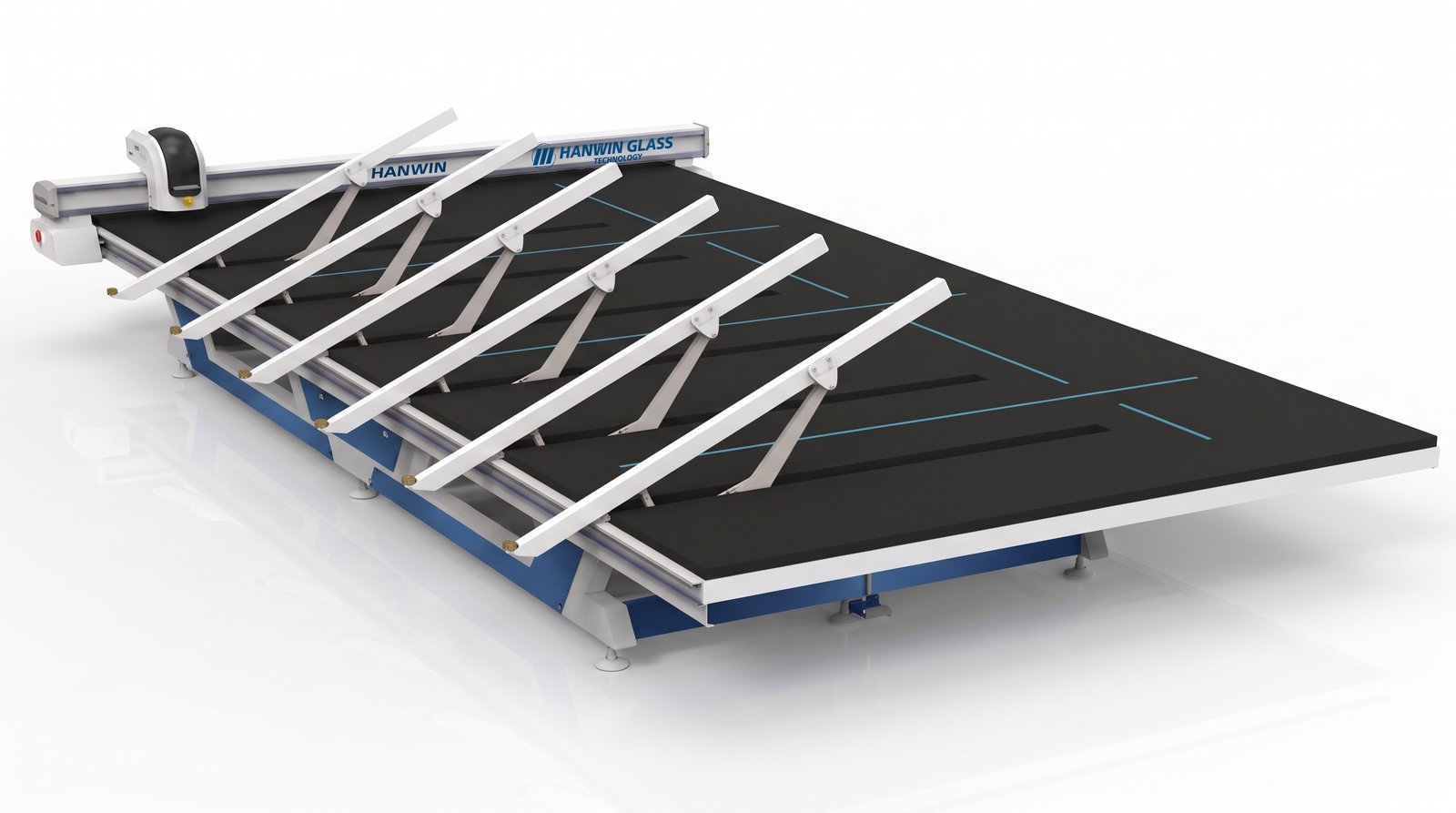

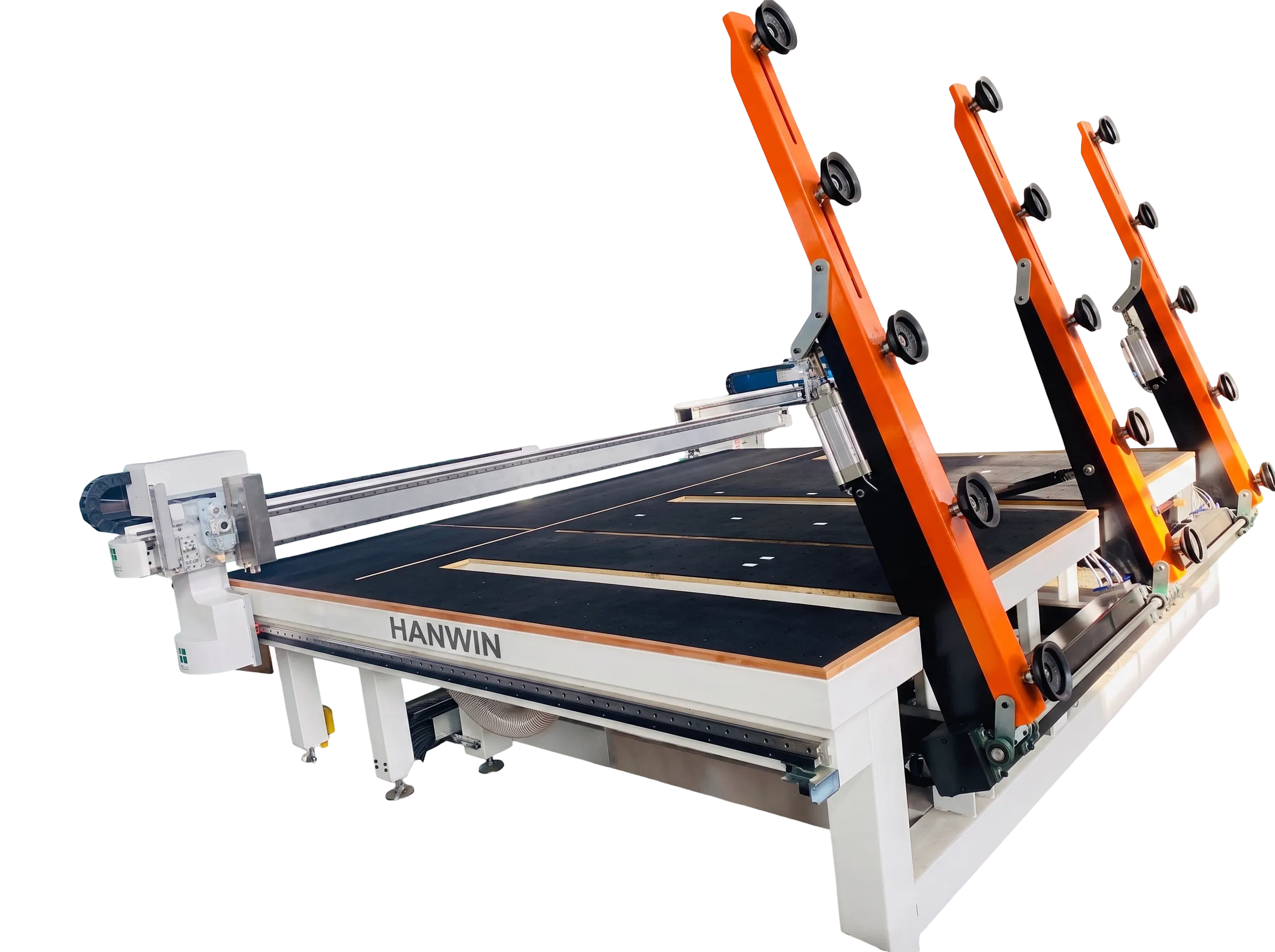

All-in-One Intelligent Glass Cutting Platform Series
The All-in-One Intelligent Glass Cutting Platform Series is the ideal solution for customers with limited space seeking user-friendly operation. Equipped with multiple loading arms, each featuring four vacuum cups, it ensures secure handling of flat glass sheets. The machine loads glass from wheeled racks positioned at the front of the table, allowing for immediate rack changes based on production needs. Automatic waste edge removal and label printing are available as optional features.

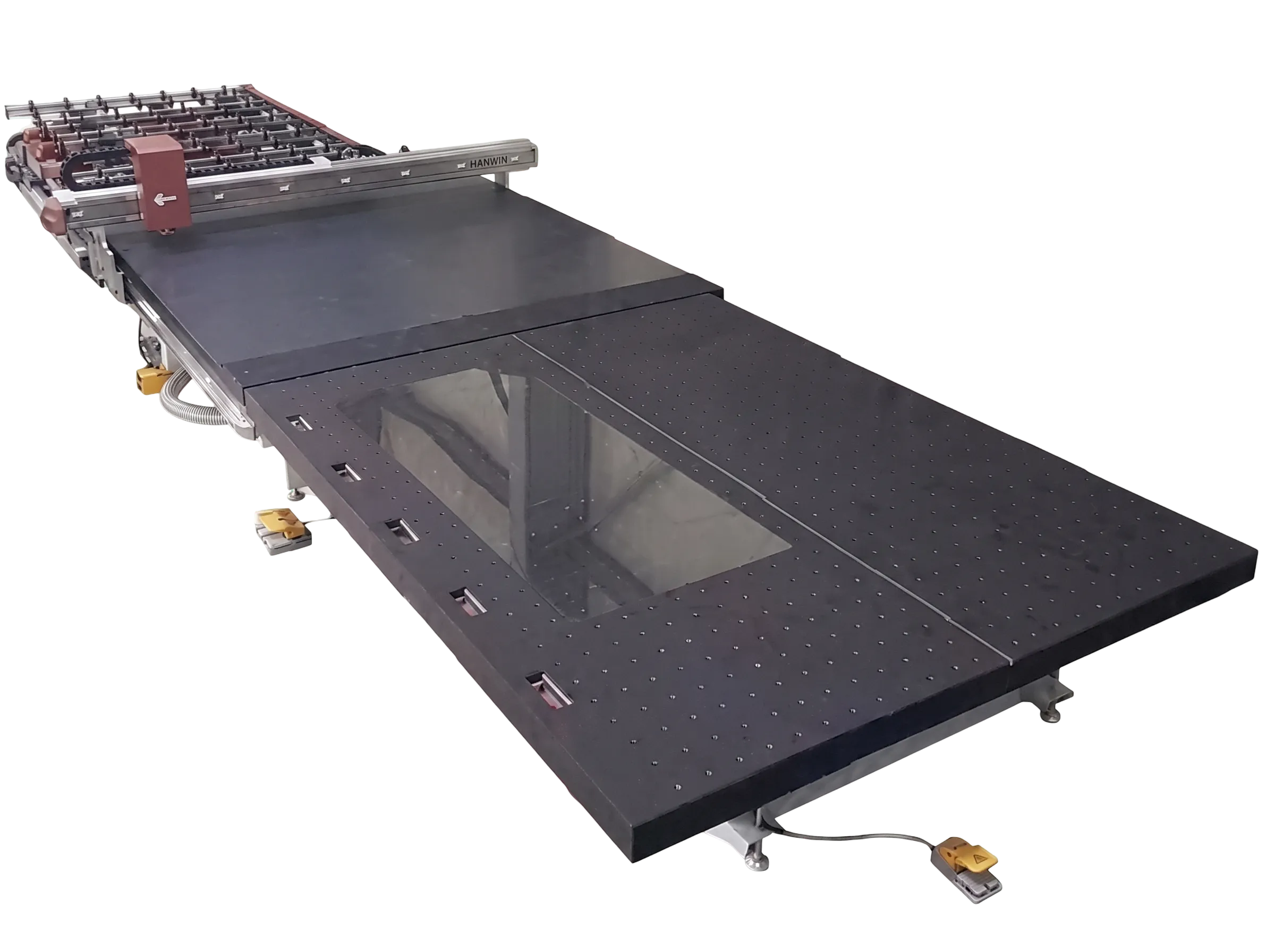

UT Series CNC Ultra-Thin Glass Cutting Line
Engineered for precision, the UT Series handles ultra-thin glass (0.2–8mm thick) including optical, LCD, mobile cover, and OGS touch screen glass. Its robust aluminum panel and linear motor drive deliver exceptional table stability and cutting performance. Seamlessly combines intelligent path optimization, 4-point scanning, and linear motor drive to deliver flawless cuts with zero waste and a precision of 0.1mm.
| Model No. | Max. Cutting Size (mm / in) | Max. Size | Precision | Thickness (mm) | Speed | Power (KW) |
|---|---|---|---|---|---|---|
| UT3624 | 3600×2400 / 144×96 | 4800×3600×850 | ±0.15 | 2–19 | 160m/min | 5 |
| PQ4228 | 4200×2800 / 165×110 | 5300×3800×850 | ±0.15 | 2–19 | 160m/min | 5.3 |

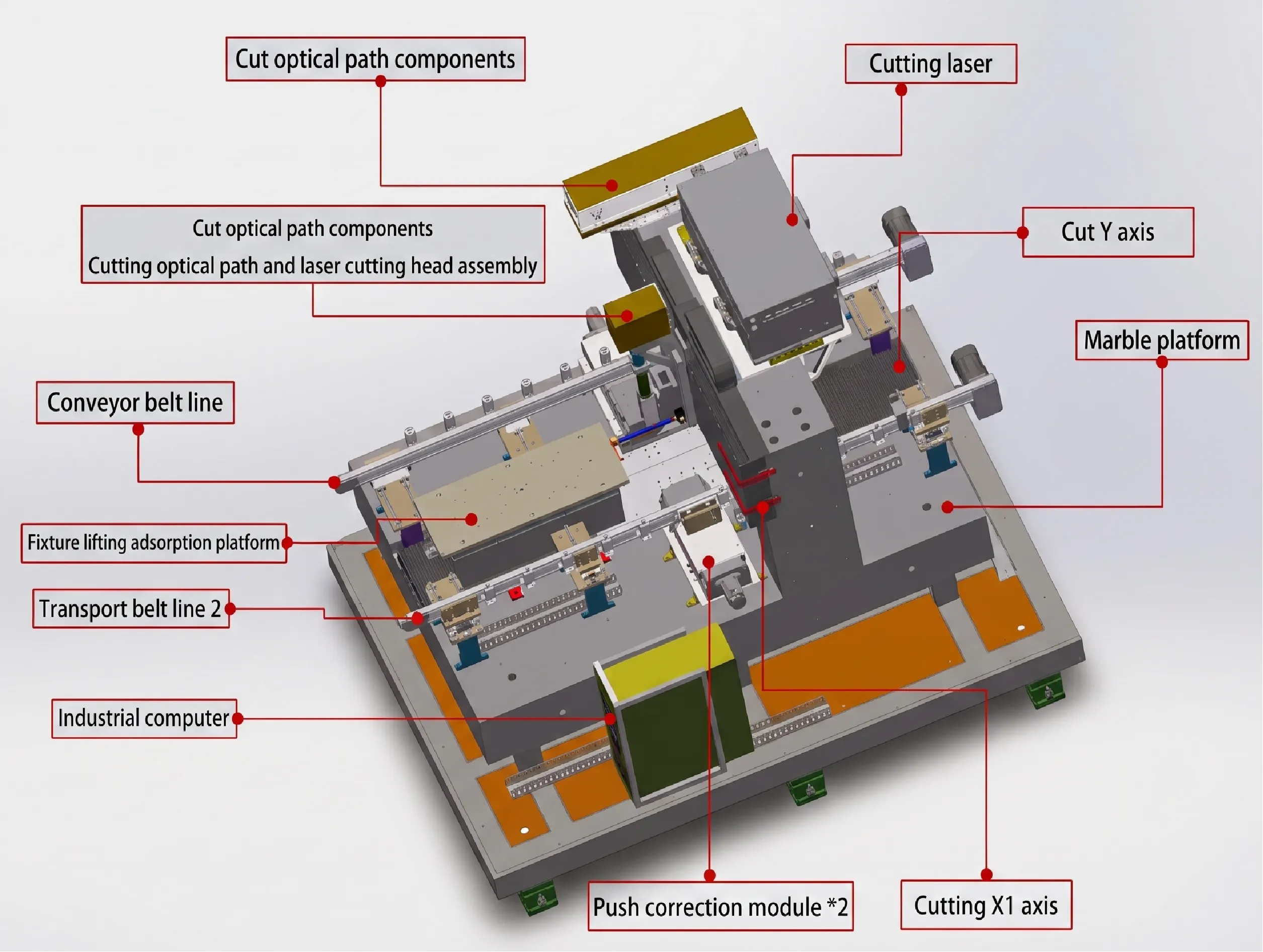

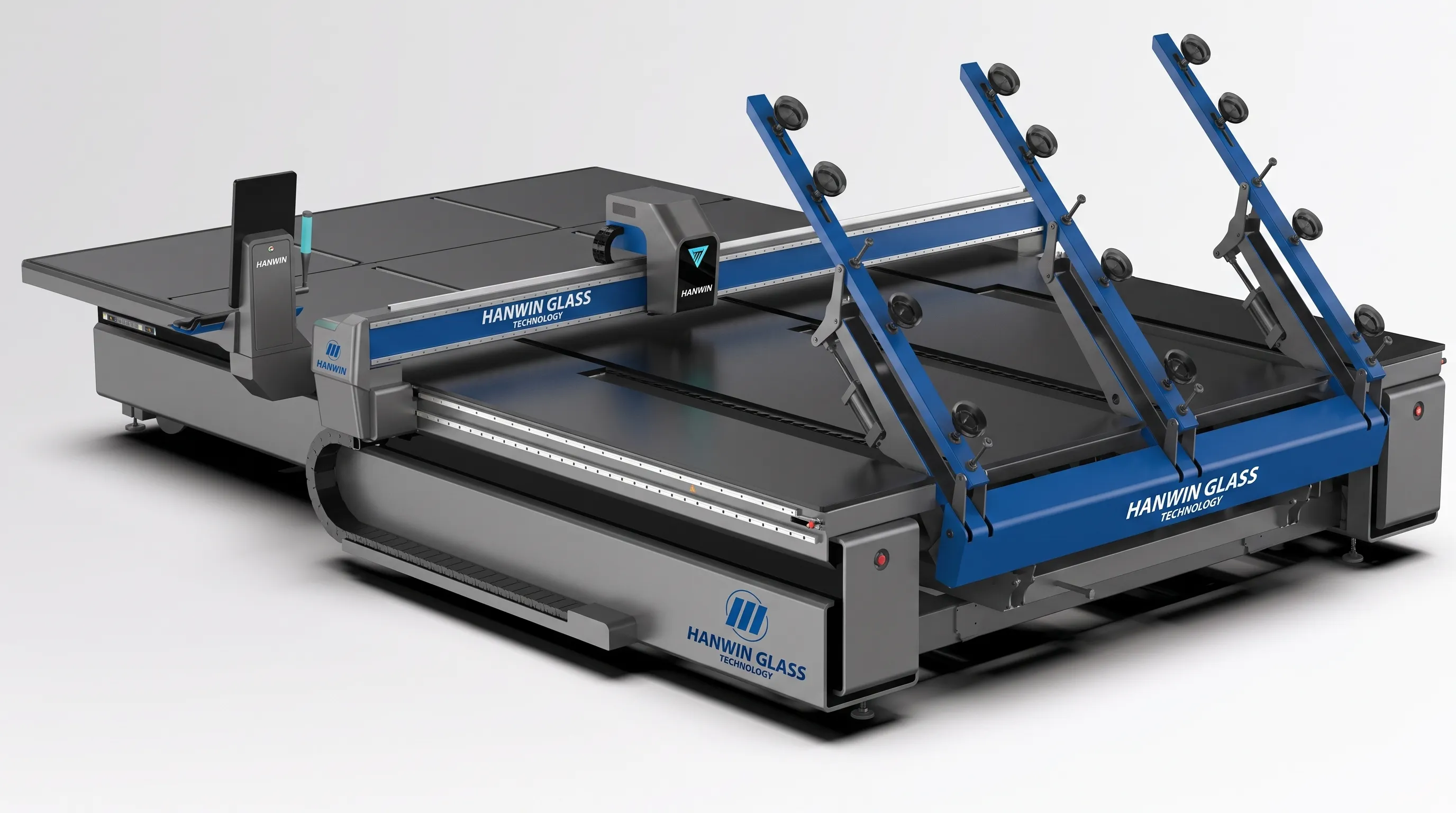

All-in-One: Cutting, Ablation & Marking
The Hanwin series of fully automatic cutting machines offer highly adaptable processing capabilities, comprehensively covering various application needs in glass processing — including automotive windshield glass, decorative mosaic glass, glass for furniture and household appliances, shower enclosure glass, architectural and engineering glass, solar photovoltaic glass, and special industrial glass.
Glass Breaking Table
The Glass Breaking Table receives scored sheets from the cutting line and cleanly separates pieces along the score lines. Its flip-table design tilts the glass to the vertical for fast, ergonomic removal of finished panels, while the pneumatic pressure bar applies controlled downward force for clean, chip-free breaking across the full piece.
Streamlined, Zero-Delay, Lag-free Intelligent Operating System
Hanwin is a fully integrated player mastering both the software and hardware for cutting systems. Our proprietary software ensures full functionality, consistent format handling, and maximum efficiency. This seamless synergy between our self-developed OS and in-house mechanical engineering delivers superior machine coordination and reliability. We are committed to developing more robust and comprehensive features to meet the precise demands of our customers.
Highly Integrated, Unified Intelligent Control
Powerful Compatibility · Seamless Integration
Complete nesting optimization, path planning, device control, process parameter setting, and status monitoring within the same intuitive interface. The unified operational logic ensures an extremely low learning curve.
One-Screen Control, Direct Data Flow
Ultimate Simplicity · Rapid Mastery
Information flows automatically from CAD files at the design end to cutting commands at the production end, and further to output data at the management end. With zero manual transcription, 100% accuracy is guaranteed. Integrated cutting and loading control eliminates cumbersome mode switching and reduces demands on operators.
One-Touch Automated Workflow
From file import to machine startup in one click
Key steps from file import, layout optimization, and cutting simulation to machine startup can be completed with a single click, significantly lowering the experience requirements for operators.
Premium components and organic integration deliver the ultimate cutting precision.
Applications of Hanwin Cutting Machines
Highly adaptable processing capabilities, comprehensively covering application needs across the glass processing industry.
Precision cutting for every glass industry
Why Choose Hanwin Glass Technology
Six reasons partners trust us for their glass cutting line.
Swiss-Grade Precision
Performs like new for a decade — Swiss-grade precision engineered into every machine.
Millions of Cycles Without Failure
Built to endure millions of cycles without failure, even under continuous production.
Human-Machine Harmony
User-friendly operation designed around the operator, every single shift.
Heritage of Craftsmanship
Three decades of unwavering dedication to exceptional product and service quality.
Innovation as Our Engine
Continuous R&D investment keeps us leading technological advancement in the industry.
Partnership Built to Last
Clients in over ten countries worldwide, with many collaborations enduring for decades.
Cutting Series - Common Questions
About cutting sizes, accuracy, loading systems and complete cutting lines.
The series handles glass up to 6100×3300mm in thicknesses from 2-19mm, covering automatic cutting, CNC cutting lines, loading systems and breaking tables.
CNC glass cutting machines hold ±0.15mm accuracy with dual-drive servo control, while the automatic cutting machine running Eos-Nc optimization software operates at up to 15m/min with ±0.25mm/m accuracy.
The automatic glass loading system uses a tilt-bar design with 12-18 suction cups to lift sheets up to 6100×3300mm from racks and position them on the cutting table without manual handling.
It combines glass storage, loading, CNC cutting and breakout in one CNC-controlled line for sheets up to 6100×3300mm - the entry point to a fully automated processing line.
The breaking table uses a flip-table design with a pneumatic pressure bar to snap cut pieces cleanly along the score line, keeping edges chip-free for the next station.
Automatic machines run Eos-Nc software with intelligent cutting optimization to minimize glass waste, while CNC lines add bar-code driven programs for automated setup.
Beyond cutting — Hanwin Glass Technology's full product range for every stage of glass processing
From edging and tempering to laminating, drilling, and handling — one trusted partner for your entire production line.
